Brass Cable Gland Single Compression Cable

Brass Cable Glands – Single & Double Compression

Our range of Brass Cable Glands includes both Single Compression and Double Compression types, designed for safe and secure termination of armored cables in industrial, electrical, and outdoor installations. These glands ensure mechanical retention, environmental sealing, and electrical continuity in power and control systems.

Manufactured from high-quality brass with optional nickel or chrome plating, these glands offer superior corrosion resistance, strength, and long-term reliability. Each type serves specific installation needs:

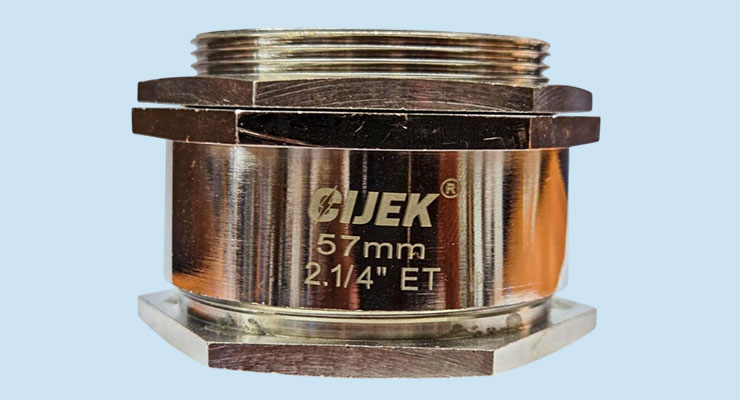

Single Compression Brass Cable Gland

  • Suitable for indoor armored cable terminations
  • Compresses at the cable's outer sheath only
  • Cost-effective and easy to install
  • Available in sizes from 16mm to 90mm
  • Thread types: Metric, BSP, NPT (customizable)

Double Compression Brass Cable Gland

  • Suitable for both indoor and outdoor armored cable terminations
  • Provides dual compression on inner sheath and outer armor
  • Offers better sealing, strain relief, and flame protection
  • Ideal for hazardous, wet, and industrial environments
  • Available in sizes from 16mm to 90mm
  • Optional Accessories: PVC Shroud, Earth Tag, Lock Nut, and Neoprene Washer
  • Finish Options: Natural Brass, Nickel Plated, or Chrome Plated
  • Standards: IS, BS, or IEC compliant (based on client requirement)
